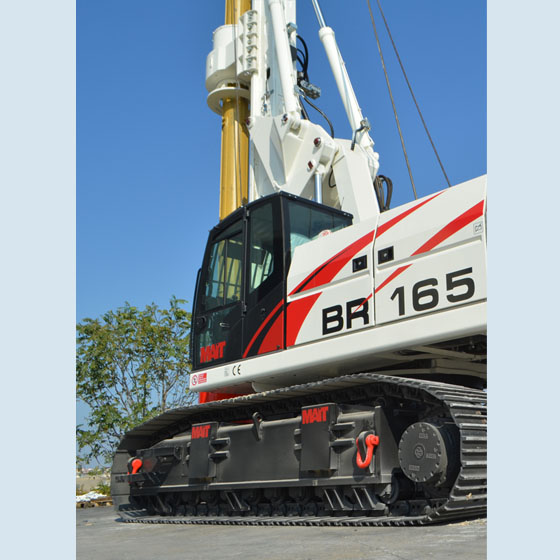

BR 165
| Technical Data | ||
|---|---|---|
| PULLBACK/PULLDOWN SYSTEM | CP Pullback/Pulldown Cylinder | THD Pullback/Pulldown Winch |
| PULLBACK/PULLDOWN FORCE | 38,218 / 35,520 lbf | |
| ROTARY STROKE | 14.1 ft | |
| ROTARY NOMINAL TORQUE | 125,500 lbfft | |
| ENGINE TYPE & POWER | CAT - 250 HP | |
| MAX DIAMETER | 5.2 - 6* ft | |
| MAX DEPTH | 190 ft | |
| WEIGHT | 104,000 lbs | |
| AVAILABLE KITS |
DW
THH
DH
SDA
SC |
|
Description

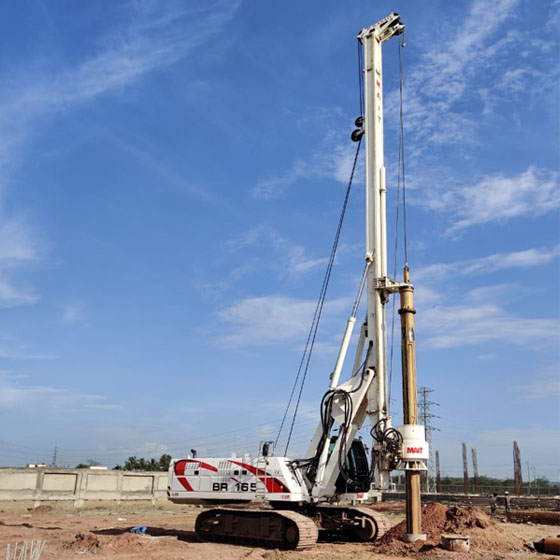

The BR 165 is a drilling rig suitable for medium to large diameter drilled shafts in any kind of soil by using a rotary system with kelly bar, augers and bucket.
